K- Means Clusters Example

K- Means Clusters Example

Problem Statement

We have collected data on several different models of cars with respect to several parameters. Use a Kmeans analysis to cluster the different vehicles together.

How to perform analysis

Step 1: Open Sigma Magic
  1. Click on the Sigma Magic button on the Excel toolbar.
  2. Click on the New button to create a new project.
Step 2: Add the analysis template

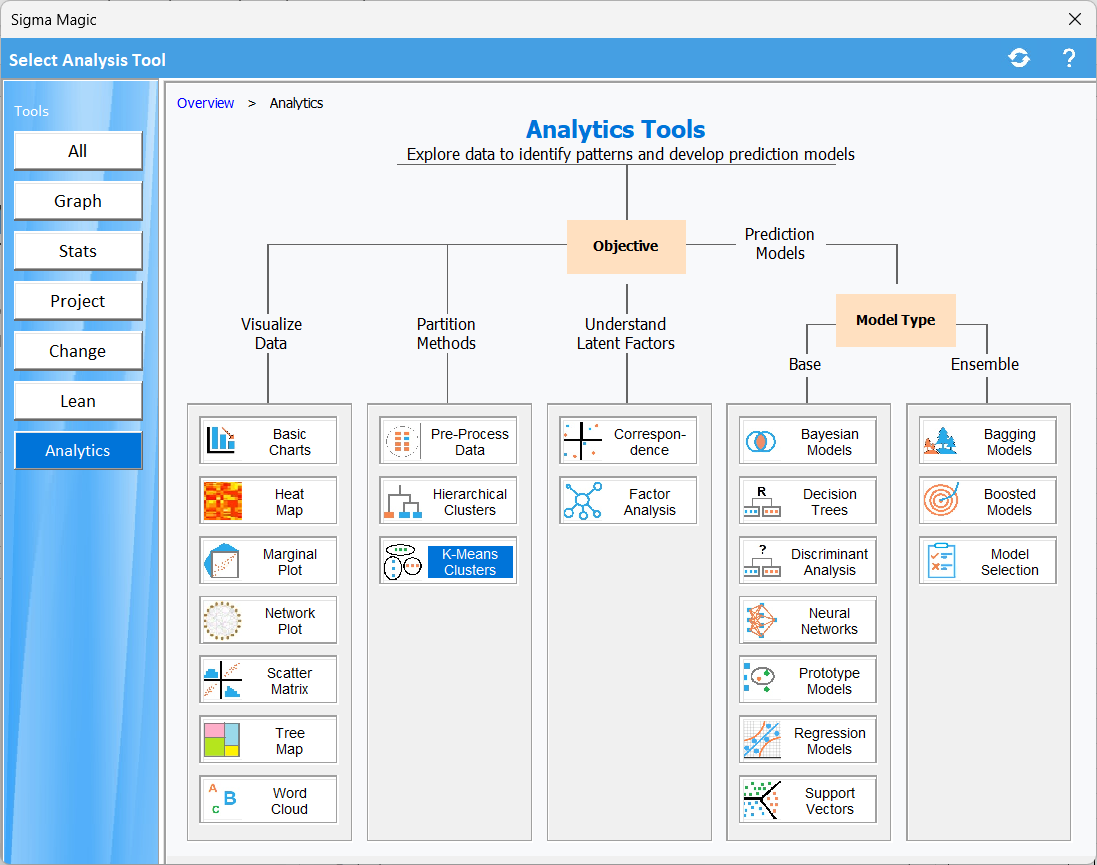

  1. Click on the Tool Wizard to add the analysis template.
  2. Click on Analytics and then on K-Means Clusters.


Step 3: Specify analysis options

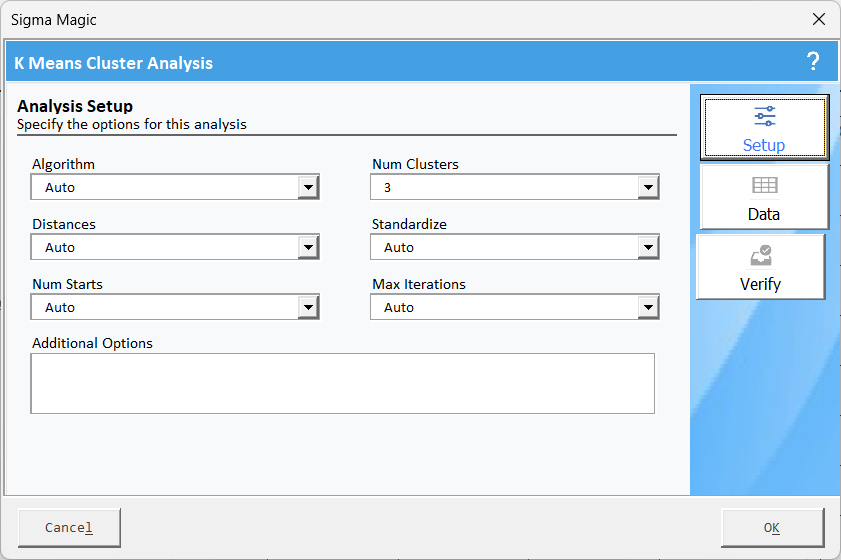

A new worksheet will be added to your workbook. Analysis Setup will be automatically opened, in the setup tab specify the survey results.
​

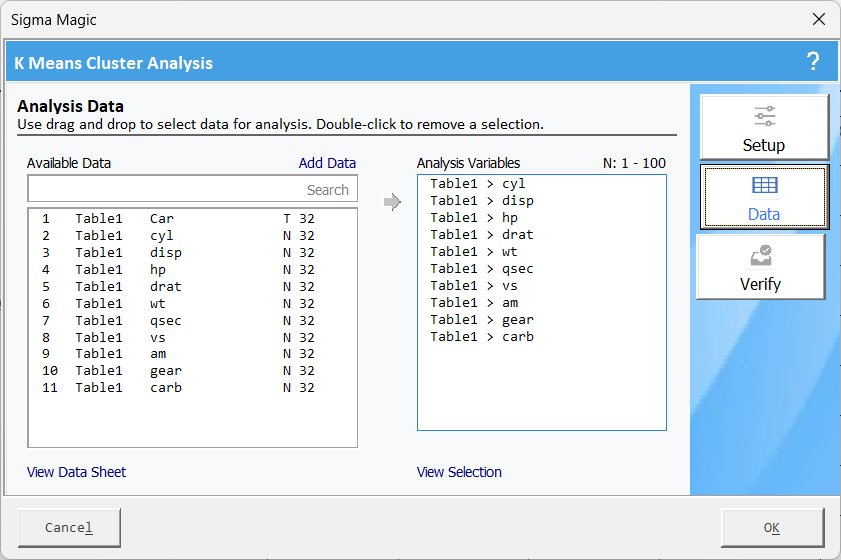

Click on Data to specify the data required for this analysis.

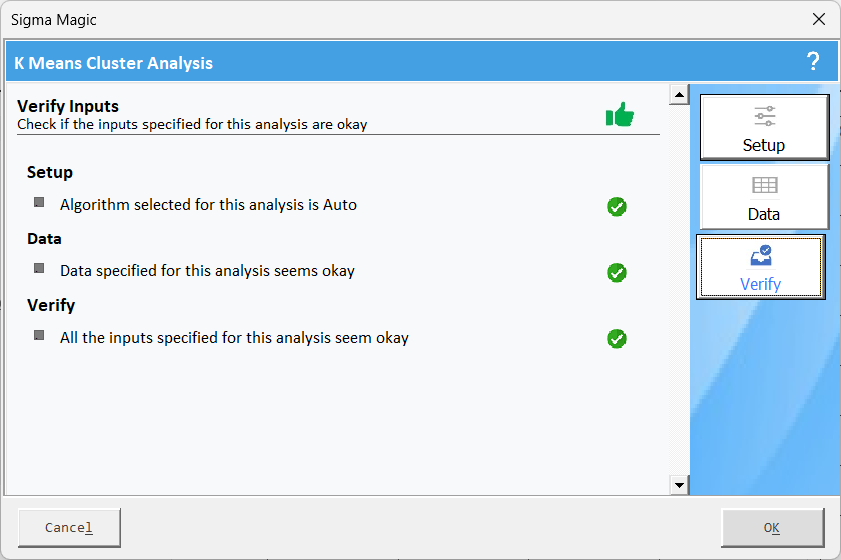

Click the Verify tab to ensure all the inputs are okay and shown in a green checkmark.



Step 4: Generate analysis result

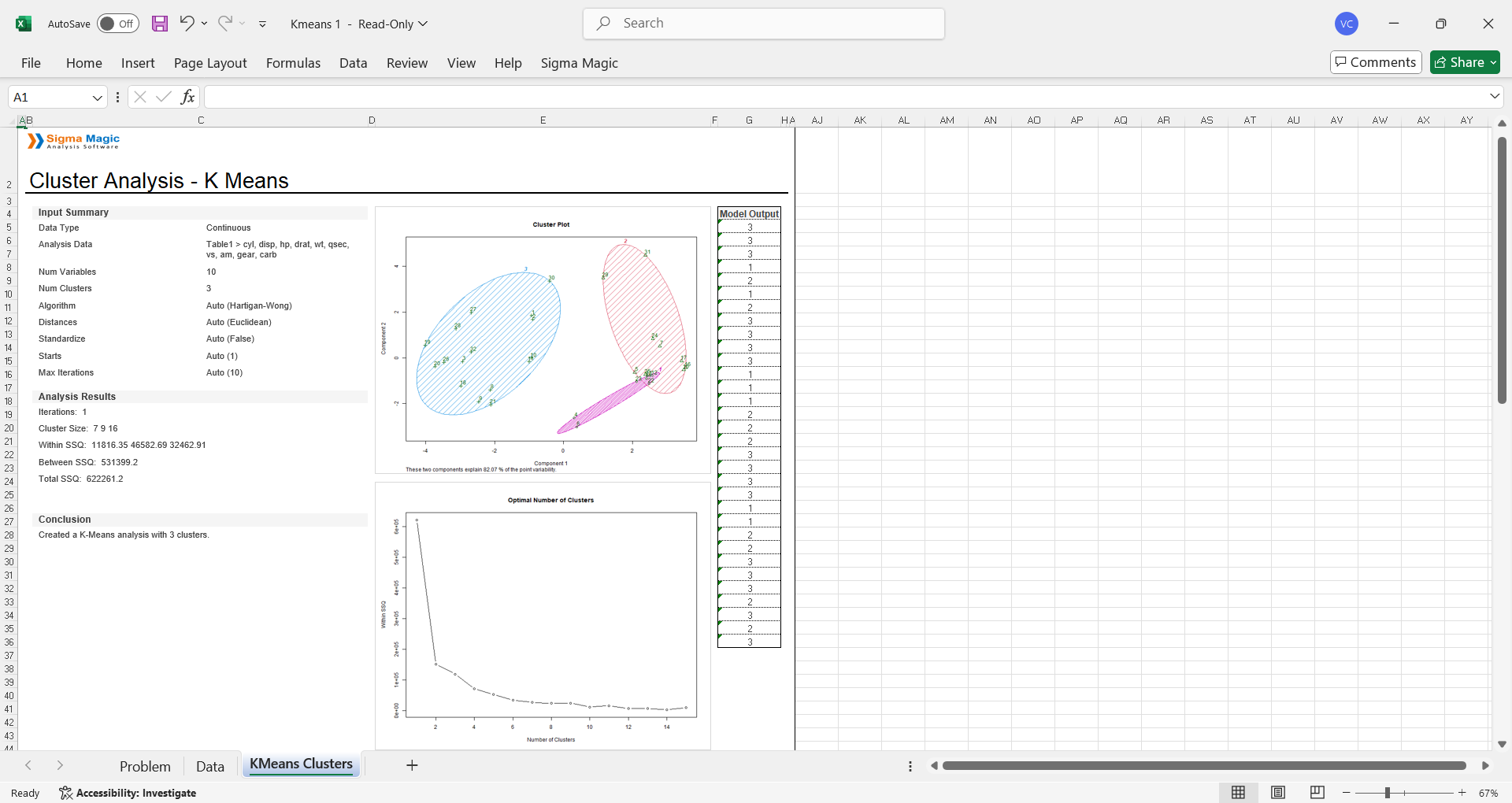

Click OK and then click Compute Outputs to get the final results.




Interpretation of Results

1.  Cluster Formation:
  • The K-Means algorithm identified 3 clusters in the dataset.
  • Cluster sizes are 7, 9, and 16 data points respectively, indicating an uneven distribution.

2.  Distance Metric & Algorithm:

  • The clustering is based on Euclidean distance, which measures similarity between points.
  • The Hartigan-Wong algorithm (Auto-selected) was used for clustering.

3.  Cluster Visualization:

  • The cluster plot shows well-separated groups, suggesting a reasonable clustering structure.
  • Overlapping regions indicate some similarity between certain data points in different clusters.

4.  Within and Between Cluster Sum of Squares (SSQ):

  • Within-cluster SSQ (sum of squared distances within each cluster) values are 11816.35, 46582.69, and 32462.91.
  • Between-cluster SSQ is 53139.2, meaning a significant portion of variance is due to differences between clusters.
  • A lower within-cluster SSQ and higher between-cluster SSQ indicate well-separated clusters.

5.  Elbow Method Interpretation:

  • The "Optimal Number of Clusters" plot (Elbow curve) suggests 3 clusters, as the curve shows a noticeable bend at k=3k = 3k=3.
  • This validates the choice of k=3k = 3k=3, meaning further increasing clusters may not significantly improve the model.

6.  Conclusion & Business Insight:

  • The dataset has been effectively segmented into three groups.
  • Depending on the application (e.g., customer segmentation, market research), each cluster could represent distinct categories based on common characteristics.
  • Further interpretation requires understanding the feature variables used in clustering.
