Model Selection Example

Model Selection Example

Problem Statement

Use the multiple models to predict the values for gear based on the other variables. The data for the exercise is shown in the Data tab.

How to perform analysis

Step 1: Open Sigma Magic
  1. Click on the Sigma Magic button on the Excel toolbar.
  2. Click on the New button to create a new project.
Step 2: Add the analysis template

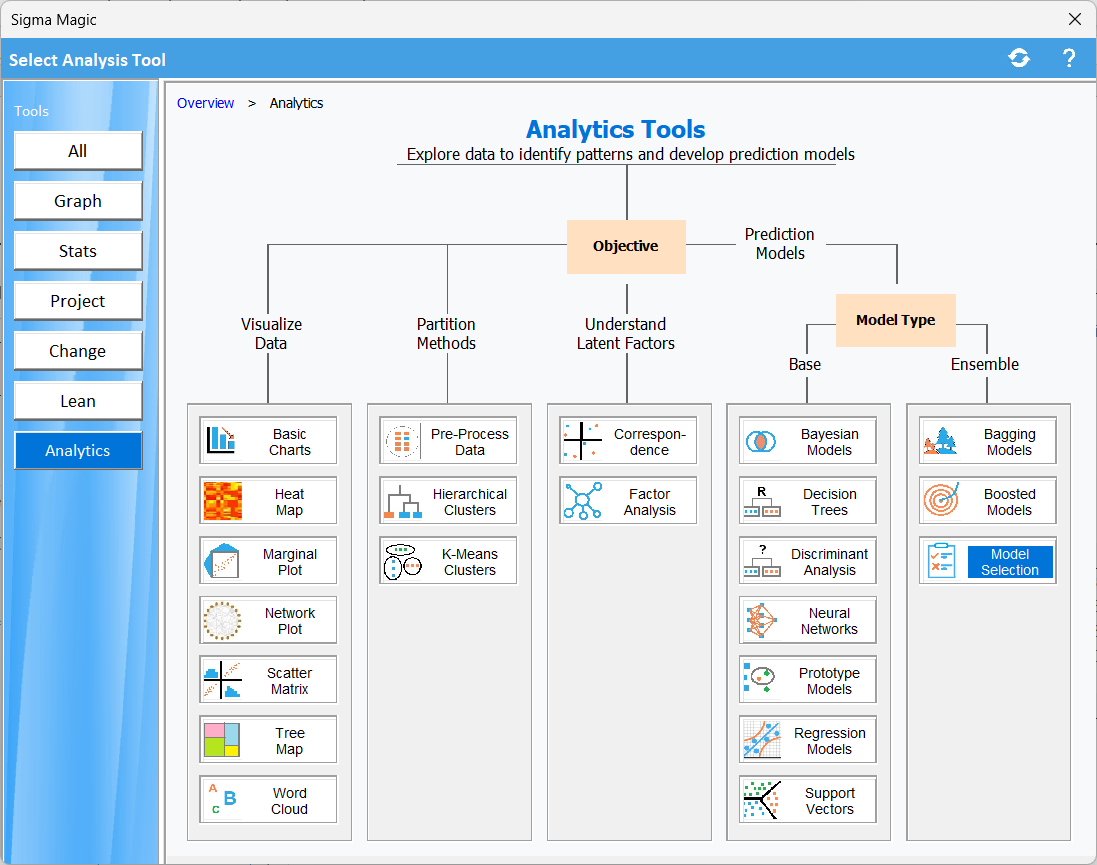

  1. Click on the Tool Wizard to add the analysis template.
  2. Click on Analytics and then Model Selection.

Step 3: Specify analysis options

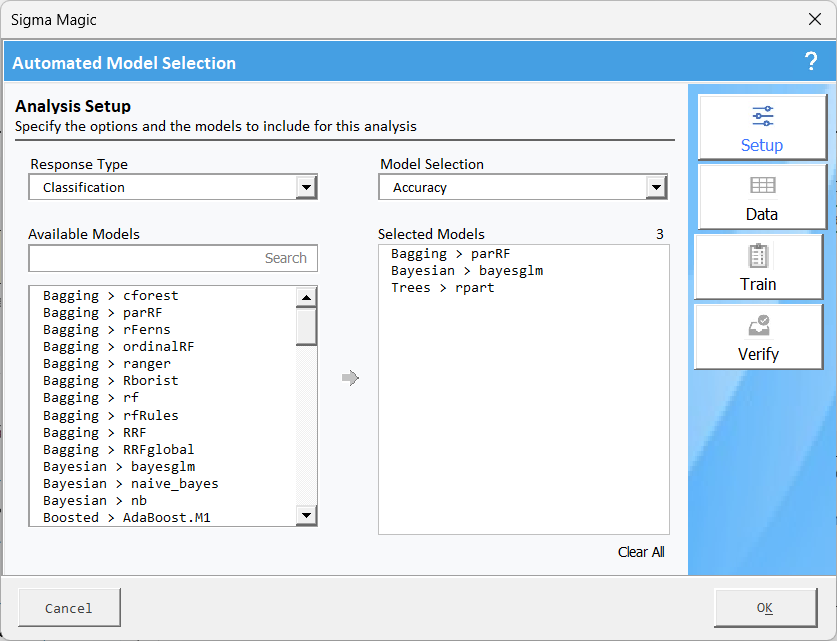

A new worksheet will be added to your workbook. Analysis Setup will be automatically opened, in the setup tab specify the survey results.

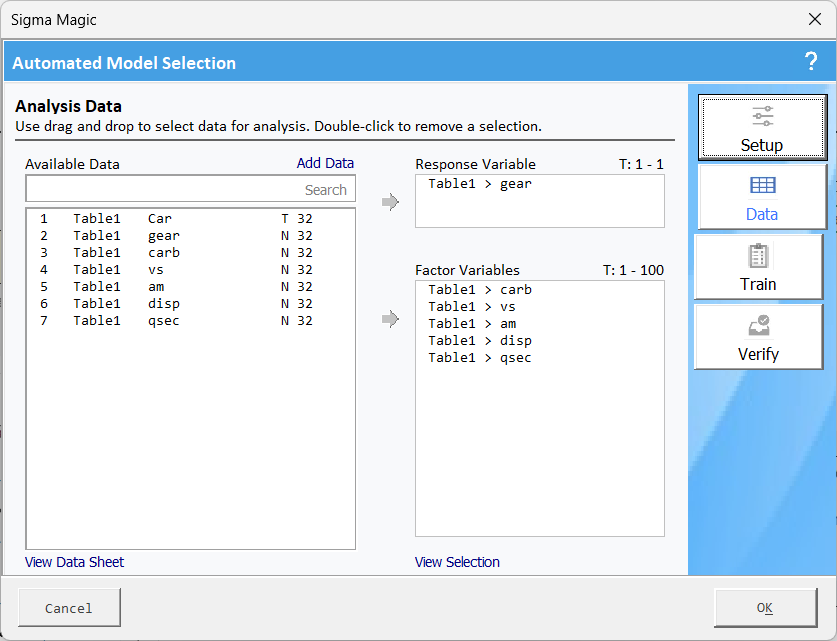

Click on Data to specify the data required for this analysis.

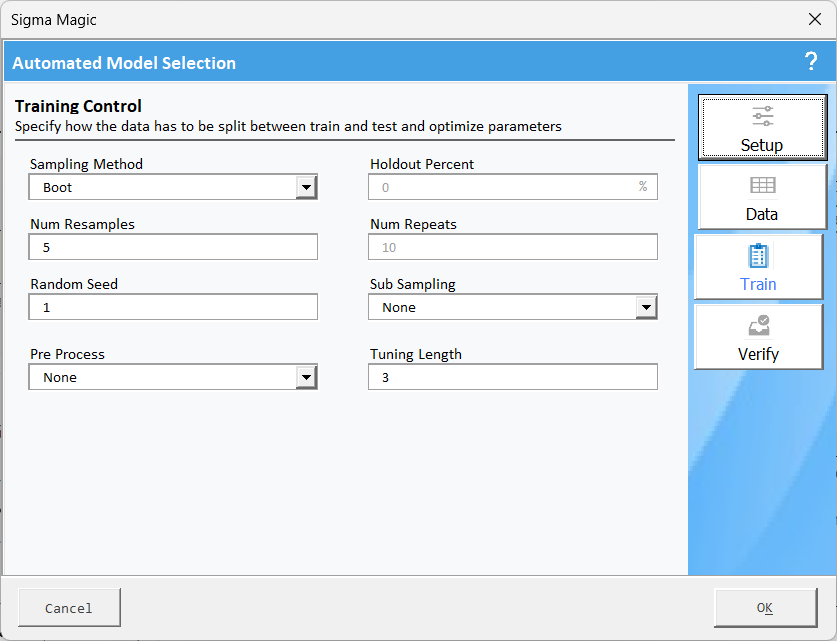

Click on the Train the software will let you pick the options for training the given model. Training is a step where we split the data into groups a train data set and a test data set.


Click the Verify tab to ensure all the inputs are okay and shown in a green checkmark.



Step 4: Generate analysis result

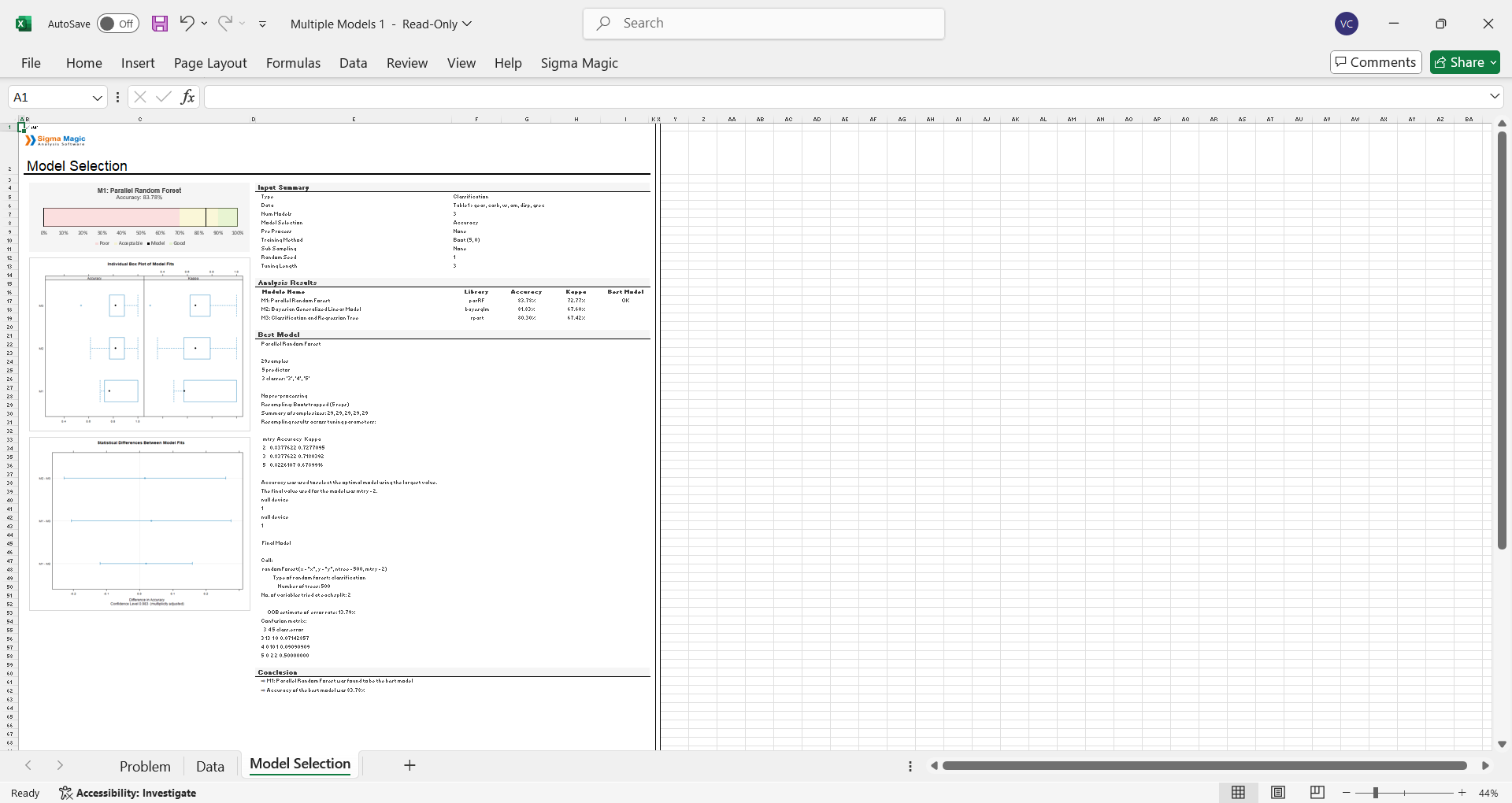

Click OK and then click Compute Outputs to get the final results.


Interpretation of Results

  • The Parallel Random Forest model (M1) has been identified as the best-performing model.
  • It achieved an accuracy of 81.37% and a Kappa statistic of 72.71%, which indicates strong classification agreement.
  • Three models were compared:
    • M1 (Parallel Random Forest) → 81.37% Accuracy, 72.71% Kappa
    • M2 (Random Generalized Boosted Model) → 81.12% Accuracy, 54.74% Kappa
    • M3 (Random Classification and Regression Tree) → 80.39% Accuracy, 57.42% Kappa
  • M1 performed the best in both accuracy and Kappa, making it the most reliable choice.
  • The model was trained as a classification problem.
  • Features used: gear, carb, vs, am, disp, qsec.
  • Resampling methods were used to improve model robustness.
  • Statistical differences between models were analyzed using hypothesis testing.
  • The lowest variation and best statistical fit was found in the Parallel Random Forest model.
  • The faults section suggests some model assumptions were tested.
  • 84 resampling bootstraps were used to validate model stability.
  • The resampling process was randomly initialized with different seeds (e.g., 23, 29).
  • Hyperparameters were tuned, ensuring optimized performance.
  • Parallel Random Forest was finalized as the best model.
  • It achieved an accuracy of 81.37%, which is the highest among the compared models.
  • The Kappa statistic of 72.71% indicates a strong classification agreement.
  • Further improvements could involve fine-tuning the number of trees, depth, and feature selection for better accuracy.
