Export PPT File

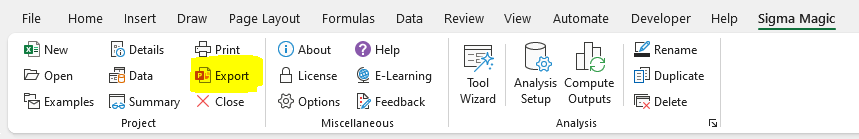

You can export the analysis that you have performed from Excel to PowerPoint by clicking on the Export button on the main menu bar.

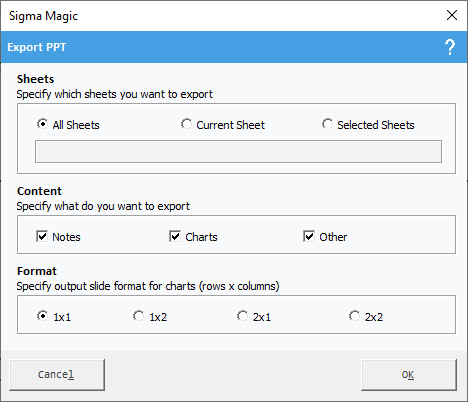

When you click on this button, the following dialog box is opened:

You can specify which sheets you want to export from Excel to PowerPoint. The default is to export all the sheets. Select the currently active worksheet or specify the sheets you want to export.

Next, you can specify what content you want to export. The default is exporting the notes, charts, and other content on the worksheet. Select the checkboxes to specify what content to export. The notes contain the text output from the analysis, the charts contain any graphical analysis, and the other content could be any content as defined on the worksheet.

Specify how you want the export to appear on the PowerPoint presentation. You can export the content to appear on one page, on two columns, on two rows, or on a two-by-two matrix.

Click on OK to generate the PowerPoint file. You can save the file and share it with other users.

Note that if you want to use a template to generate the PowerPoint file, you can specify the template format in Options > External Files > PowerPoint Template.

Note that the content from Excel is exported as images and there will not be a link between Excel and PowerPoint. If you change the content of the Excel files, you will need to re-export the file to update the PowerPoint presentation.
